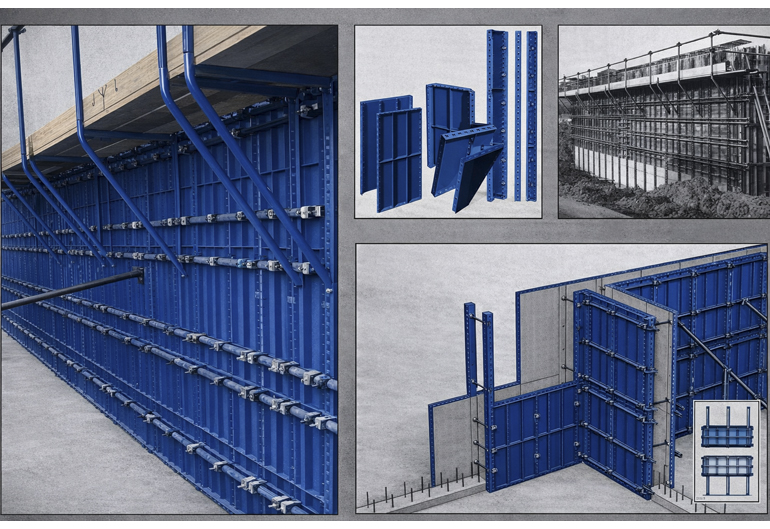

Straight wall formwork uses panels made of steel, aluminum, timber, or plastic to create precise vertical walls, secured with ties and supports to maintain stability and wall thickness, with release agents enabling easy removal after concrete sets. At VS Industries, straight wall formwork systems are made using malleable steel, offering strength, flexibility, and durability to withstand high concrete pressure.

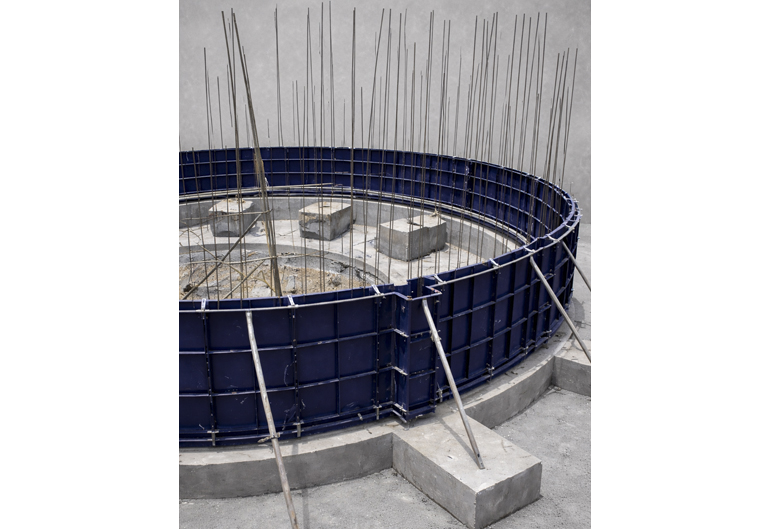

Circular wall formwork is a specialized construction system designed to create curved or circular walls with precision and strength. It typically consists of curved panels or adjustable formwork systems that can be customized to match the desired radius of the wall. At VS Industries, circular wall formwork systems are made using malleable steel, providing strength, flexibility, and durability to withstand high concrete pressure.
Crash barriers are heavy-duty road safety systems manufactured to prevent vehicles from veering off highways, bridges, or elevated roads during impact. These barriers absorb and redistribute collision energy, reducing the severity of accidents and protecting both passengers and roadside infrastructure.

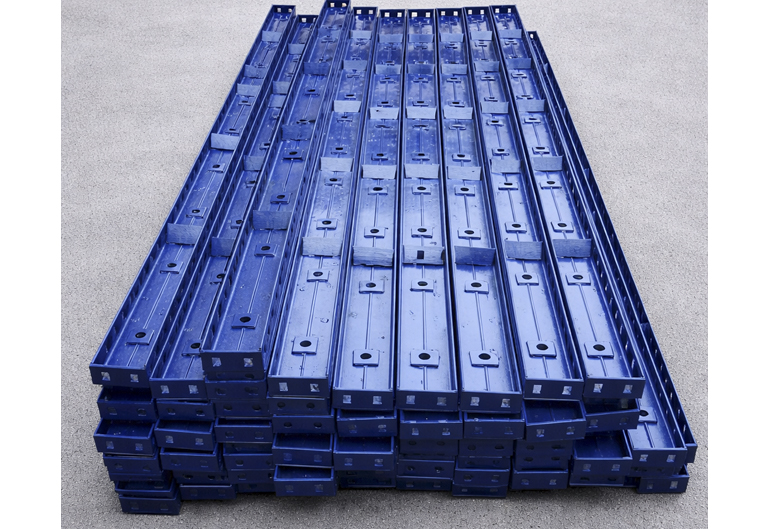

Channel Soldiers are structural support members made from C-channels of various sizes and thicknesses, used in formwork and shuttering systems to provide strength, alignment, and load support.
Sheet with Slotted Angle Soldiers are support members made using MS sheets reinforced with slotted angles welded onto the sheet. This design provides added strength, stability, and flexibility, allowing easy alignment and secure fastening in formwork and shuttering systems.

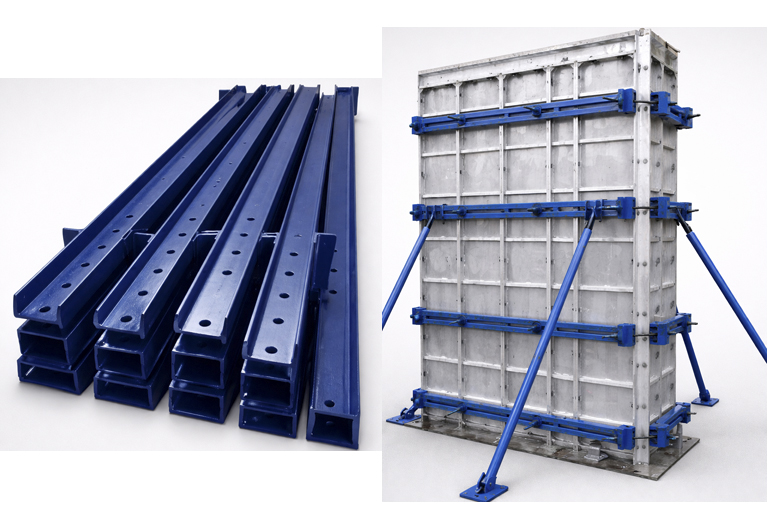

A Waler (or Waller) is a *horizontal support member fixed outside shuttering panels* to strengthen the formwork and distribute the pressure of fresh concrete. Functions * Strengthens shuttering panels * Distributes concrete pressure evenly * Holds tie rods in position * Keeps formwork aligned and straight Used in * Pier shuttering * Pier cap shuttering * Column shuttering * Wall shuttering * Bridge formwork Common materials* MS channel (C-channel) * Steel box sections * Timber beams (for small projects)
Single Clamp – A fastening component used to securely hold formwork panels or structural members in position during concrete pouring.
Bridge/Double Clamp – A heavy-duty clamp used to connect and hold two members together, providing stronger grip and stability in formwork or scaffolding systems.
Clip and Wedge – A quick-lock fastening system used to join shuttering or formwork panels, ensuring tight alignment and easy assembly or dismantling.
Assembly Bolt – A high-strength bolt used to connect and secure different formwork or structural components during installation.
Tie Rods – Steel rods used in formwork systems to hold panels together and maintain uniform wall thickness by resisting concrete pressure
Wing Nut with Waller Plate – Used with tie rods to tighten and secure formwork panels, where the waller plate distributes load evenly and the wing nut allows easy tightening.
Anchor Nut – A fastening component used with tie rods to lock formwork systems firmly and maintain structural alignment
BRC Clamp – Used to hold BRC mesh or reinforcement mesh securely in position during construction and concrete casting.
Turn Buckle - Turnbuckle is an adjustable fastening device used to tighten or loosen tension in tie rods, cables, or bracing systems. It helps maintain alignment, stability, and proper load distribution in wallform and structural applications.
Angle Bracket - It is an L-shaped structural support component used to join, reinforce, or stabilise two surfaces or members at a right angle. It is commonly used in scaffolding, formwork, and construction assemblies to provide strength, alignment, and load support.
